Description
Model Parameters

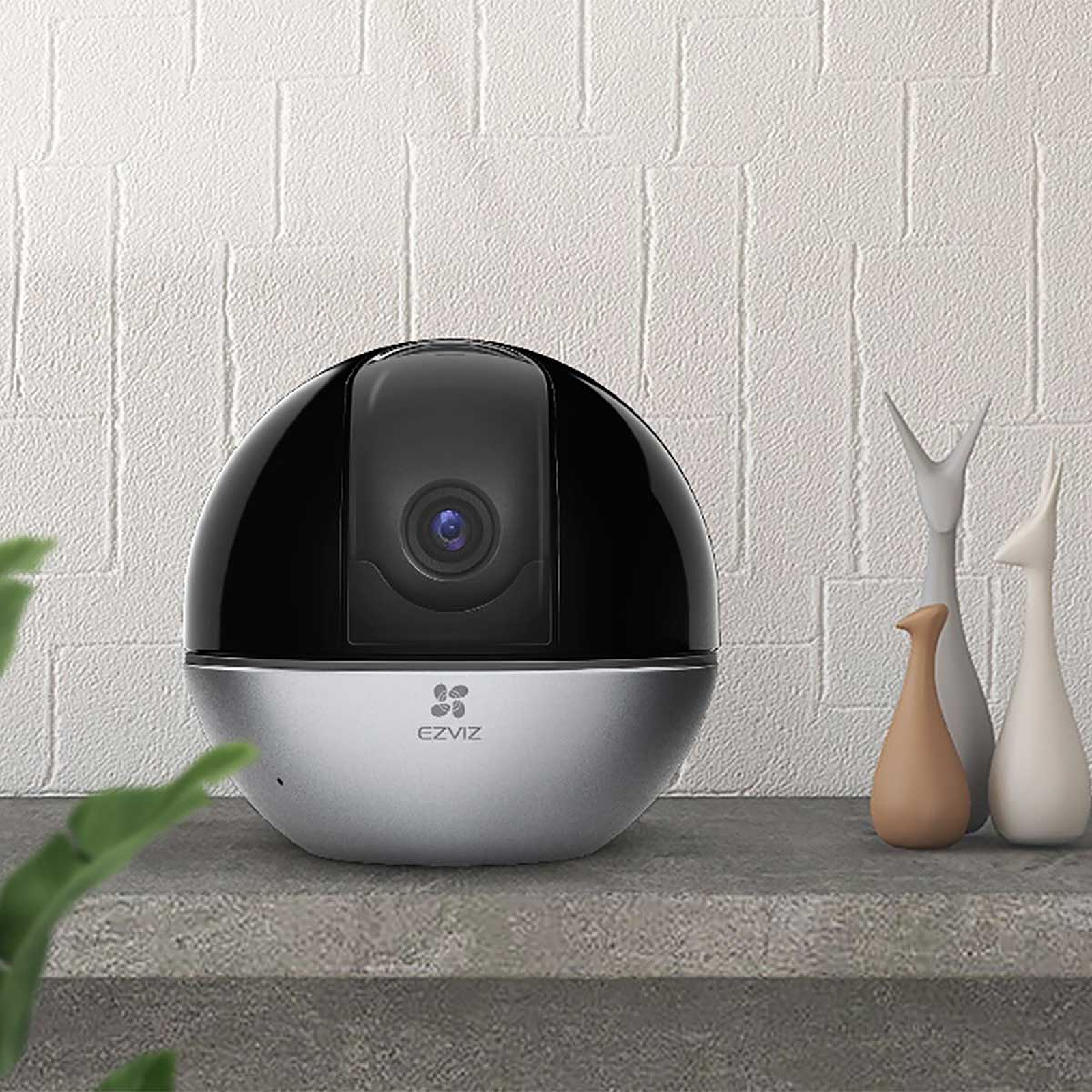

Model CS-C6W-A0-3H4WF
Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F2.0, view angle: 83° (Horizontal), 57° (Vertical), 104° (Diagonal)
PT Angle Pan: 340°, Tilt: 75°
Minimum Illumination 0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR True-WDR
BLC Supports
Night Vision 10m
Video & Audio
Max. Resolution 2560 × 1440
Frame Rate Max: 25fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad HD; Full HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 4Mbps
Storage
Local Storage MicroSD card slot (Max. 256G)
Cloud Storage EZVIZ Cloud Storage
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.412 GHz ~ 2.472 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Wired Network RJ45 × 1 (10M/100M Adaptive Ethernet Port)
General
Operating Conditions -10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing)
Power Supply DC 5V / 2A
Power Consumption MAX. 8W
Dimensions 95.8 x 95.8 x 90.6 mm (3.77 x 3.77 x 3.57 inch)
Packaging Dimensions 126 x 126 x 160 mm (4.96 x 4.96 x 6.30 inch)
Net Weight 252 g (8.89 oz)
Weight 513 g (1.13 oz)
Function
Smart Alarm AI Person Detection
Customized Alert Area Supports
Two-Way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
