Description
Specifications

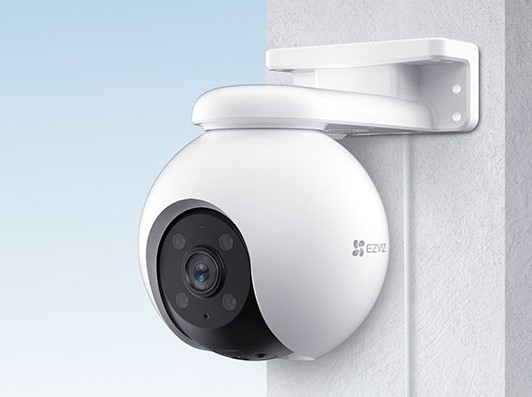

Model CS-H8-R100-1J5WKFL
Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F1.6, Viewing angle: 46° (Vertica), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, Viewing angle:28° (Vertica), 54° (Horizontal), 62° (Diagonal)
PT Angle Pan: 340°, Tilt: 80°
Minimum Illumination 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Night Vision Distance Up to 30m / 98ft
Video & Audio
Max. Resolution 2880 × 1620
Frame Rate Max:30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Quad HD+; Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 4 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK / WPA2-PSK
Transmission Rate 11b 11Mbps, 11g 54Mbps, 11n 72Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 × 1(10M / 100M Adaptive Ethernet Port)
Storage
Local Storage Supports Micro SD card (Up to 512GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
Function
Smart Alarm AI Powered Human / Vehicle Detection / Waving-Hand Recognition &Control
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
General
Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V / 1A
Power Consumption MAX. 6W
Dimensions 116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch)
Packaging Dimensions 187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch)
Weight Net Weight: 592 g (20.88 oz) With Package: 943 g (33.26 oz) For EU Standard Version
