Specifications
| Specifications | |
|---|---|

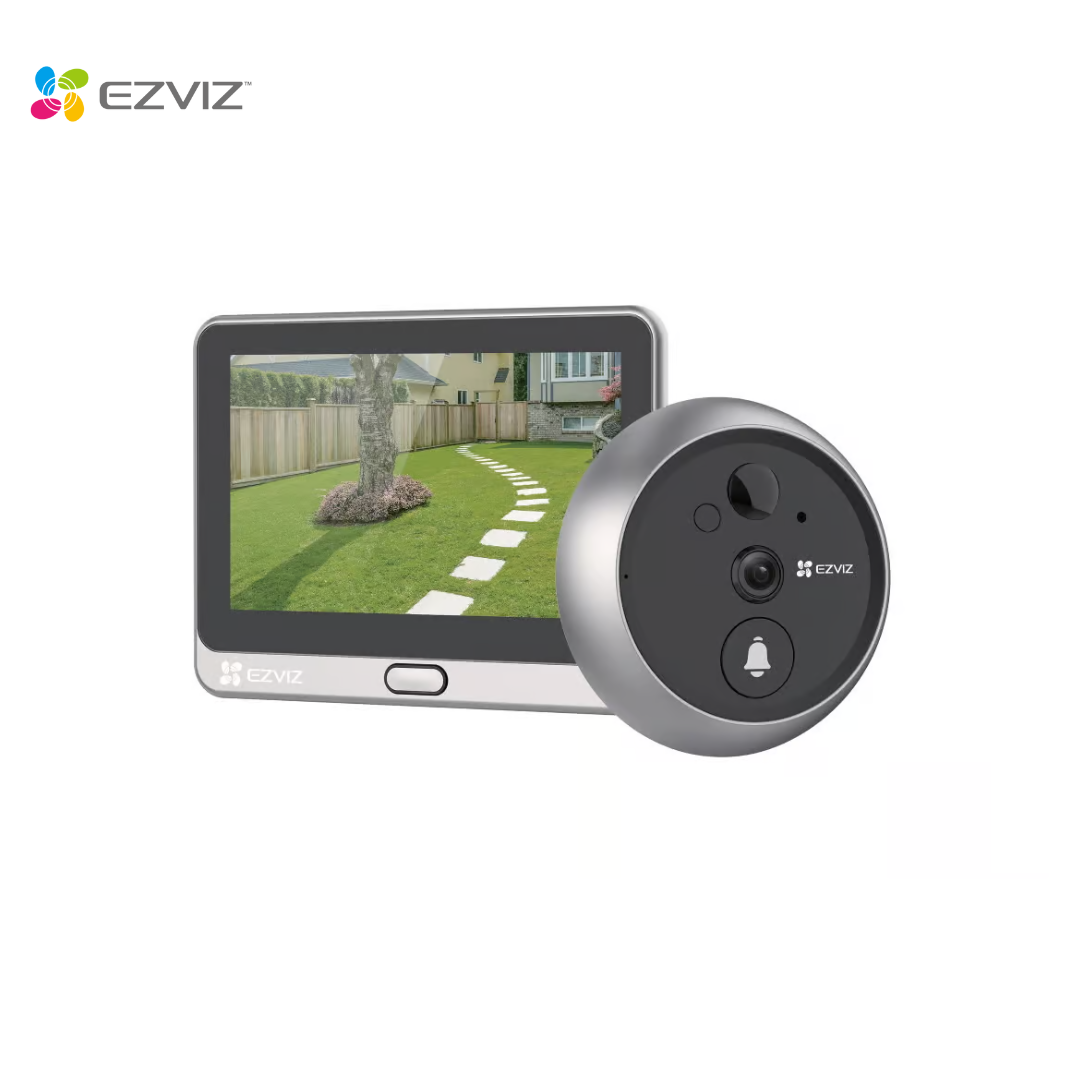

| Model | CS-DP2-A0-6E2WPFBS |
| General | |
| Dimension | Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch) |
| Camera: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch) | |
| Weight | Product: 320 g (11.28 oz) With package: 603 g (21.27 oz) |
| Screen | 4.3 inch Color Touch Screen |
| Color | Silver |
| Button | Doorbell button, power button, screen wake-up button |
| Supported Peephole Diameter | 16.5 mm to 50 mm (0.65 inch to 1.97 inch) |
| Supported Door Thickness | 35 mm to 105 mm (1.38 inch to 4.13 inch) |
| Ingress Protection Grade | IP54 for the outdoor camera part (needs to be installed correctly and tightly onto the door) |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Camera | |
| Sensor | 1/2.7″ Progressive Scan CMOS |
| Lens | 2.0mm @ F2.0 Viewing angle: 166° (Diagonal), 136° (Horizontal), 80° (Vertical) |
| Max. Resolution | 1080p / 2MP |
| Day / Night Switch | ICR infrared filter |
| IR Night Vision Distance | Up to 16.4 ft / 5 m |
| Video & Audio | |
| Video Frame Rate | 15 fps |
| WDR | DWDR |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Ringtones | Supports up to 5 ringtones, and the volume is adjustable |
| Function | |
| Detection | Advanced PIR Motion Detection |
| PIR Angle | 110° |
| PIR Distance | Up to 20 ft / 6 m |
| PIR Sensitivity | Adjustable |
| Image distortion correction | Supports |
| Local Storage | Supports microSD card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General Function | Cloud video encryption and image encryption |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Intercom | Local and remote video intercom |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Power | |
| Wiring | Hard-wired |
| Power Supply | DC 5V ± 10% |
| Power Consumption | Max. 2.2W |
| In the box | |
| In the box | – DP2 Peephole Doorbell |
| – Panel | |
| – Mounting Base | |
| – Buckle | |
| – Screws × 6 | |
| – Power cable | |
| – Regulatory Information | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS / UKCA |
