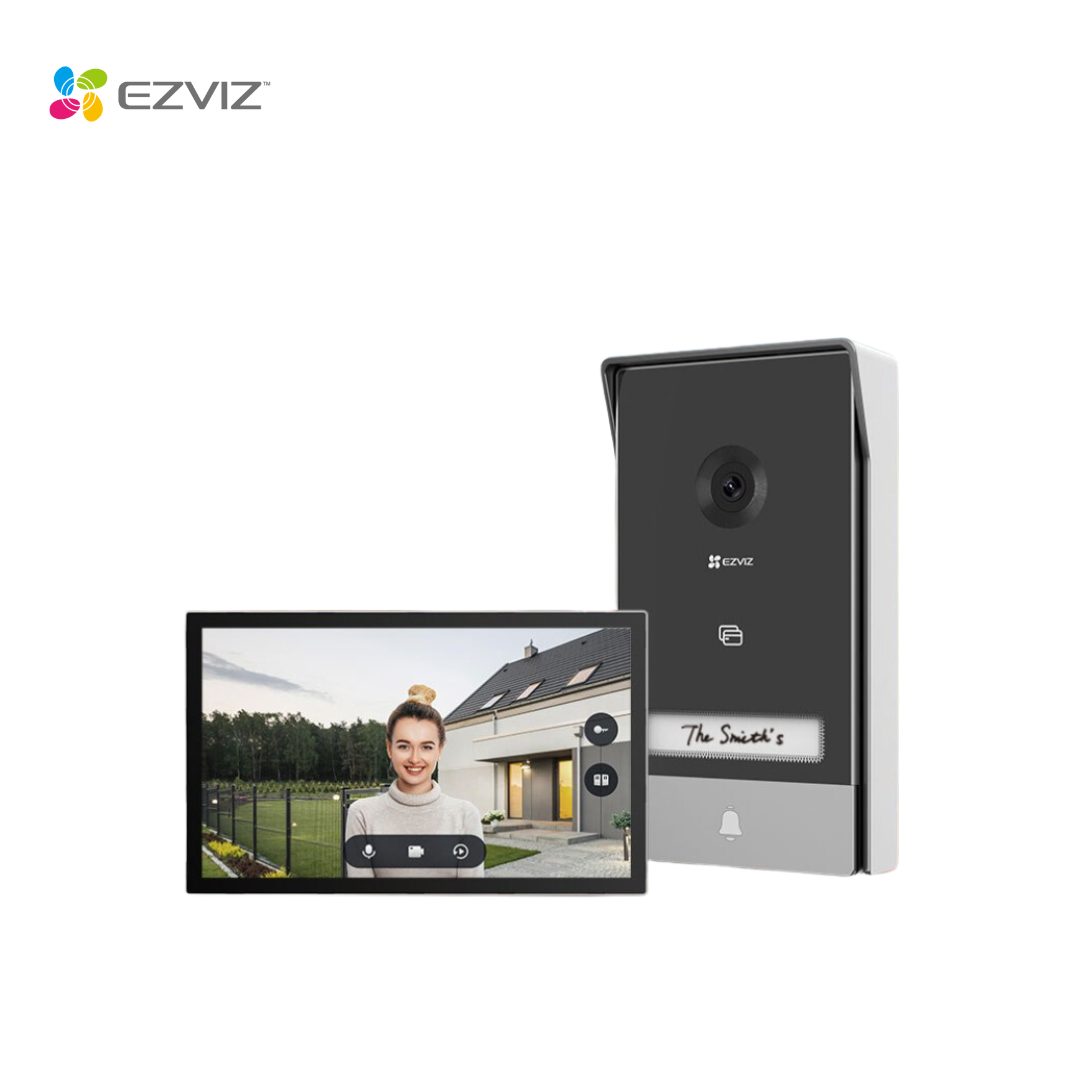

HP7 2K Smart Home Video Doorphone


In stock

Categories: ,


Model CS-HP7-R105-1W2TFC

Outdoor Doorbell
Image Sensor 1/2.7″ Progressive Scan CMOS (Supports low light sensitivity)
Lens 2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution 2048 × 1296
Video Compression H.265 / H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Connection Method Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
Open the door (Gate) Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate) Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
Door Open Methods 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock
Outdoor Doorbell Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Doorbell Button Yes. The light can be set on or off.
Name Card Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.
Terminal Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Intelligent Alarm Smart human motion detection, Lingering Detection
Tamper Alarm Supports
Video Intercom Long-distance video two-way talk
Operation Conditions -30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade Waterproof, with shield cover
Size 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
Interior Display
Display size 7” touch screen
Resolution 1024 × 600
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button Screen On / Off Button
Terminal Two wiring ports to connect 1st outdoor doorbell.
Supports microSD card up to 512 GB

Supports EZVIZ Cloud storage

Network Parameters
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Coud Proprietary Protocol
Protocol EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth Supports 20MHz
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Multiple ringtones Up to 20 ringtones
Functions Live view, playback, two-way talk, video call
Operation Conditions -10°C to 45°C, humidity 95% or less (non-condensing)
Weight Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)
Size 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply DC 24V / 1A power supply, adaptor (100- 240Vac)
Power Consumption 8W, Max. 24W
In the box
In the box – Monitor
– Wall Bracket for Monitor
– Power Adapter for Monitor
– Drill Template for Monitor
– Intercom Panel
– Drill Template for Intercom Panel
– Screwdriver
– Badges (×3)
– Screw Kit (×2)
– Name Card (×2)
– Wires and Wire Connectors
– DC 24V Power Supply Jack Connector Cable
– Regulatory Information (×2)

– Quick Start Guide
Certifications CE / REACH / WEEE / RoHS
